Product Description

Orion Telecom Networks Inc. offers VCL-30, iDSL Access solution provides upto 15 iDSL (ISDN Digital Subscriber Leased Line) ports, each port supporting data @ 128Kbps. The ISP / CO Side iDSL cards transport synchronous data @ 128Kbps, upto a distance of 4 miles (5KM) on a single twisted pair, which may be terminated at the customer premises on Orion's V.35, iDSL modems, or Cisco's 802 / 804 10baseT, iDSL Routers.

VCL-30 iDSL DSLAM

VCL-30 iDSL DSLAM


CO Side iDSL cards are also compatible with a host of other Customer Premises baseband modems from other manufacturers.

The maximum transmission range, over which 128Kbps of data can be delivered using Orion's iDSL equipment is 4 miles (5KM) on a 26AWG (0.4mm) twisted pair. Increased transmission distances may be attained by use of a higher wire gauge pair. Please refer to the "Distance Table" provided at the end of this brochure for transmission distances that are possible with other wire gauges. The transmission distances may also be doubled using standard (off-the-shelf) ISDN repeaters.

At the ISP site / POP site the ISP / CO side Orion's iDSL Access equipment multiplexes the 15, iDSL links providing 15 leased lines to various customers @ 128Kbps each, to an E1 interface which may be directly connected to the E1, VWIC (channelized E1) card of a Cisco Router. Time-slot selection and management is available to assign the E1 time-slots to the various active iDSL links.

The VCL-30TM, E1 (Common Equipment) consisting of the following components:

  • E1, Control Cards
  • 9" Shelf 3U High (sub-rack)
  • Connectorized Backplane (3 U High) and
  • 48V DC Input Power Supply Card

The Central Office / ISP Premises interface equipment includes the following cards:

Orion's Central Office / ISP premises iDSL modem card - part number VCL-30-080 (used with the VCL-30 Common Equipment) can be used to deliver data @ 128 Kbps to a customer premises up to a distance of 5 KM., on a ordinary 0.5 mm twister copper pair.

S. No.

Part #

Product Description of the Use Configurable Units

Qty.

1

VCL-30-080

iDSL Modem Card, Central Office / ISP Multiplexer Side - transports 128Kbps on a single twisted copper pair upto 5KM.

1 to 15

At the customer premises the VCL-30, iDSL DSLAM provides multiple options for customers: (see application diagrams)

  1. To connect the remote subscriber on Orion’s iDSL desktop modem. (see customer premise option # 1) - application diagram 1

  2. To connect the remote subscriber on Cisco's iDSL router. (see customer premises option # 2) ) -application diagram 2

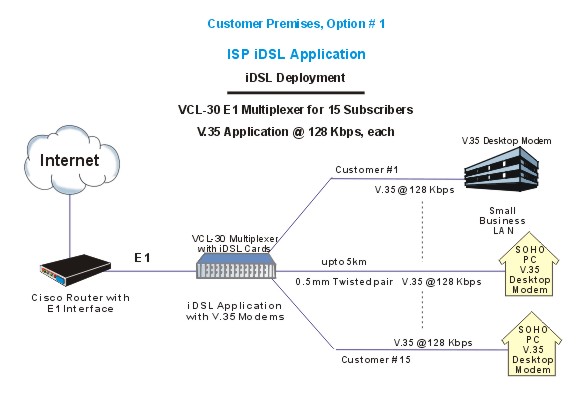

Customer Premises Option # 1    (to see application diagram click here)

Orion's Central Offices / ISP Premises iDSL Modem cards - (part # VCL-30-80) can be used with our V.35, baseband modem - part # VCL-30-090 (desk top customer premises modem with V.35 interface)

S. No.

Part # Customer Premises iDSL equipment - Option 1 Qty.

1

VCL-30-090

iDSL Desk-Top Modem Customer Side / Remote Side - transports128Kbps on a single twisted copper pair upto 5KM.
Customer Premises Interface - V.35 (DB 25)

1 to 15

2

VCL-30 iDSL
V.35 male

(DB 25) adapter cable - V.35 Data Interface Cable (with male M34 connector) 1 to 15

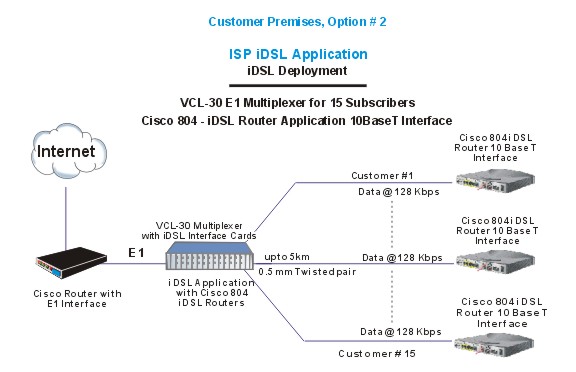

Customer Premises Option # 2 - Cisco's iDSL Router  (to see application diagram click here)

CISCO 804 RouterOur Central Office / ISP Premises iDSL Modem cards - (part # VCL-30-80) is also compatible with the Cisco's 804 iDSL Router and can be used to deliver data @ 64 Kbps / 128 Kbps to the Customer Premises, on 2 wires. The Customer Data Interface is a 10BaseT x 4, on the Cisco's 804 iDSL Router

CISCO 804 Router

Serial No.

Part #

Customer Premises iDSL equipment - Option 2 Qty.
1

Cisco - 804 iDSL Router

Cisco - 804 iDSL Router with Universal Power Supply, 110V AC-220V AC, 50Hz / 60Hz, UL and CE  Approved Customer Premises equipment. Data Interface - 10BaseT x 4 Ports. Delivers 64/128 Kbps leased line upto 5 KM.

1 to 15

The above solution delivers 64Kbps / 128Kbps, leased line, upto 5 KM from the VCL-30, to the customer premises on iDSL. Terminates on 10BaseT x 4 ports at customer premises.

Note
Either customer Premises option # 1, or customer premises option # 2 may be ordered, for use with Central Office / ISP Premises iDSL Modem cards - (part # VCL-30-080) depending on the user requirements.

Technical Specifications

E1 Specifications
Line Code : HDB3

Impedance : 120 Ohms, balanced pair
Connection : RJ 45 OR Wire-Wrap (Compatible with Cisco Routers - VWIC (Interface Cards)
Time Slots used : 1-15, 17-31, Time Slot Selectable through a built-in Cross Connect Switch.

iDSL Specifications

Maximum Distance : 5KM (4 miles) on 0.5 mm twisted Pan. Distance may vary with cable gauge
For distance using various cable gauges please refer to chart below.
Line Coding: (Twisted Pair) 2BIQ
Transmission Technique: iDSL (ISDN) Data Rate 64 Kbps / 128 Kbps selectable
Lighting Protector: CCITT Table K/20

DISTANCE TABLE - KM. (Miles)

Data Rate
(Kbps)

                                    Wire Gauge (AWG/mm)

19 (.9mm) 22 (.6mm) 24 (.5mm) 26 (.4mm)
128 17.4 (10.8) 11.6 (7.2) 8.1 (5.0) 5.5 (3.4)
64 17.4 (10.8) 11.6 (7.2) 8.1 (5.0) 5.5 (3.4)
